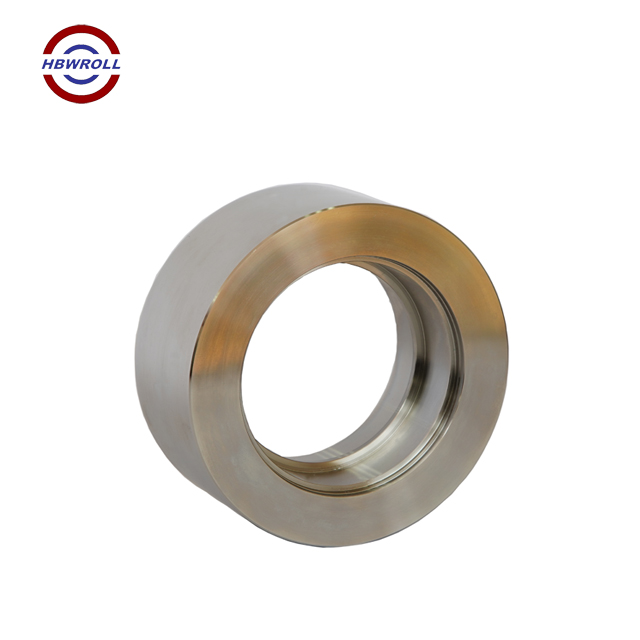

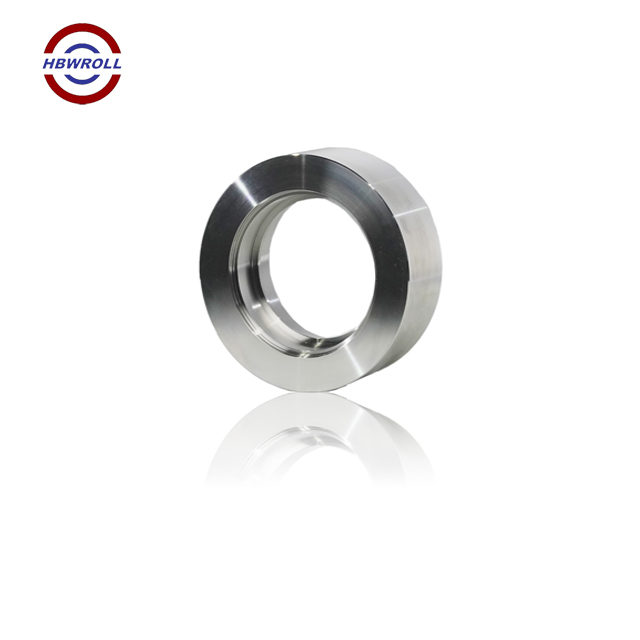

| This is a self-developed new type of material for the rings in the universal mill of H-section steel rolling line. | |||||||||
◆◇ Unique Features
High V, W, Cr, Mo, Nb and other alloy elements. Carbide types: MC and M2C with high hardness and good abrasion resistance.
Excellet thermal stability, high hardness and good wear resistance.
High expansion coefficient and good thermal conductivity, more conducive to control.
Forming oxide film during rolling process, improving roll wear resistance significantly.
Super high strength of the roll core (DCI).
◆◇ Specification
H Beam Universal Mill Ring | |||
Brand | HBW ROLL | Material Code | HBWr06 |
Specification | Ø200-Ø850 | Hardness | 62-64HRC |
Hardness Drop | ≤3HSD | ||
Features & Advantages | 1. High wear resistance and impact toughness under thermal load | ||
2. No cracking or bursting phenomenon | |||
3. Less re-machining amount | |||
4. Good process ability with high machining efficiency | |||
5. Total steel pass life can reach 3 times than Adamite rings, with high cost performance. | |||
Application | Vertical rings of H Beam universal mill | ||
◆◇ Chemical Analysis
Material | HBW Patented Chemical Composition (%) | |||||||||||
C | Si | Mn | Cr | Ni | Mo | V | W | P & S | Nb | Co | Others | |
HSS (Alloy composition changes based on different grades) | 1.5 ~ 2.10 | 0.3 ~ 1.0 | 0.30 ~ 0.70 | 3.00 ~ 6.00 | 0.50 ~ 1.50 | 3.0 ~ 7.0 | 2.0 ~ 8.0 | 1.0 ~ 8.0 | ≤0.03 | Depends on HSS Grade | ||
◆◇ Physical Properties
| Properties | Tensile Strengt | Compressive Strength | |
| ≥700MPa | ≥2500MPa | ||
◆◇ Micro structure
Excellent Technical of HBW’s Patented Casting and HT Process Guarantee the Superior Micro-structure of each HSS Rolls.
Metallographic Micrograph are available to supply in HBW.
