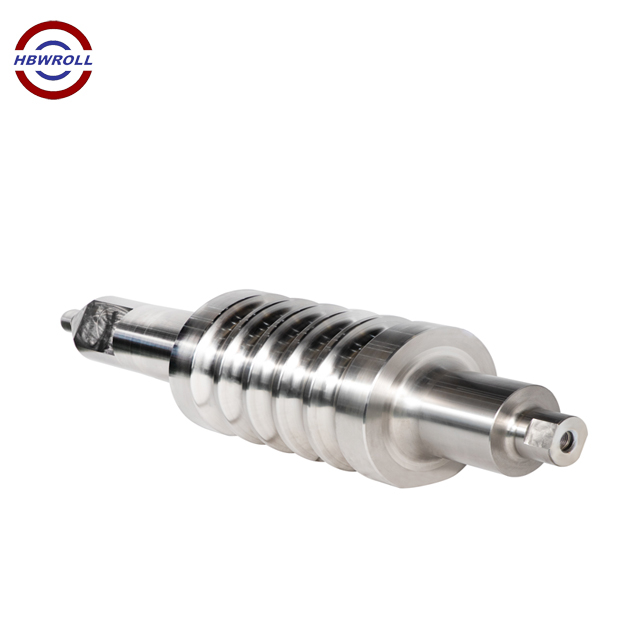

| Angle steel is a kind of carbon structural steel used in construction and engineering. It has good weldability and mechanical strength, it’s widely used in various building structures and engineering structures. The good wear resistance of high-speed steel rolls not only ensure the quality of rolling steel,but also improve the rolling capacity for customers. | |||||||||
◆◇ Unique Features
High V, W, Cr, Mo, Nb and other alloy elements. Carbide types: MC and M2C with high hardness and good abrasion resistance.
Excellet thermal stability, high hardness and good wear resistance.
High expansion coefficient and good thermal conductivity, more conducive to control
Forming oxide film during rolling process, improving roll wear resistance significantly
Super high strength of the roll core (DCI)
◆◇ Specification
| Type | Normal | Enchanced | High Strength |
| Roll Specification | Ø280 - Ø850 mm | ||
| Density | 7.6 g/cm³ | 7.8 g/cm³ | 8 g/cm³ |
| Casting | Centrifugal Casting | ||
| Heat Treatment | HBW Patented | ||
| Hardness | General: 82-89HSD Different range based on stands | ||
| Hardness Drop | ≤3HSD | ||
| Rolling Temperature | 780℃-1100℃ | ||
| Pass Life | 4-5 times than CI Rolls | 1.3 tims than HSS Normal | 1.5 tims than HSS Normal |
| Dressing | 1.0-1.5mm | ||
| Use Periods | 8-10 Cycles | ||
| Application | Good Thermal Stability | ||
| High Hardness and High Abrasion performance,long working life | |||
| No scratch and burrs | |||
| Accept customize and lettering | |||
◆◇ Chemical Analysis
Material | HBW Patented Chemical Composition (%) | |||||||||||
C | Si | Mn | Cr | Ni | Mo | V | W | P & S | Nb | Co | Others | |
HSS (Alloy composition changes based on different grades) | 1.5 ~ 2.10 | 0.3 ~ 1.0 | 0.30 ~ 0.70 | 3.00 ~ 6.00 | 0.50 ~ 1.50 | 3.0 ~ 7.0 | 2.0 ~ 8.0 | 1.0 ~ 8.0 | ≤0.03 | Depends on HSS Grade | ||
◆◇ Physical Properties
| Properties | Barrel | Core | |
| Tensile Strength | ≥700MPa | ≥450MPa | |
| Compressive Strength | ≥2500MPa | -- | |
