| This is a a self-developed new type of material for the pinch rolls in the high speed wire rod and bar rolling lines. | |||||||||
◆◇ Unique Features
High V, W, Cr, Mo, Nb and other alloy elements. Carbide types: MC and M2C with high hardness and good abrasion resistance.
Excellet thermal stability, high hardness and good wear resistance.
High expansion coefficient and good thermal conductivity, more conducive to control.
Forming oxide film during rolling process, improving roll wear resistance significantly.
Super high strength of the roll core (DCI).
◆◇ Specification

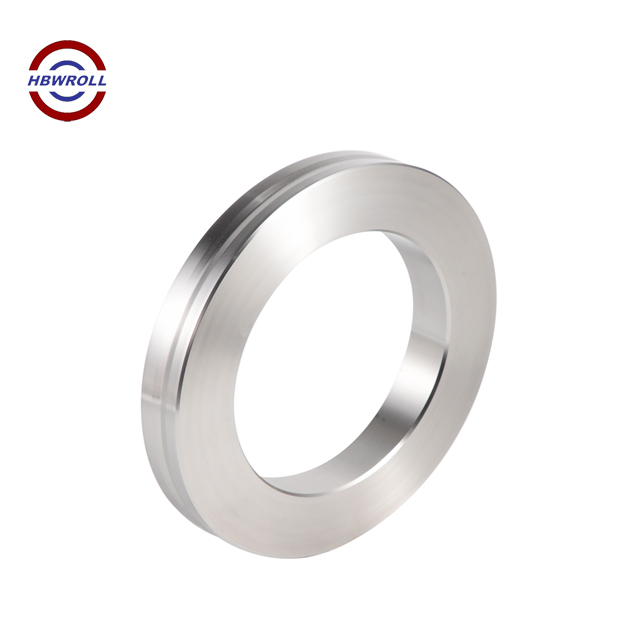

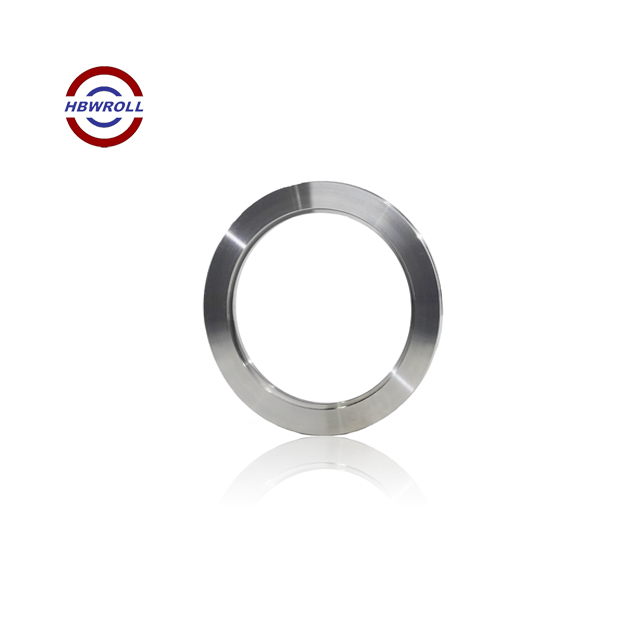

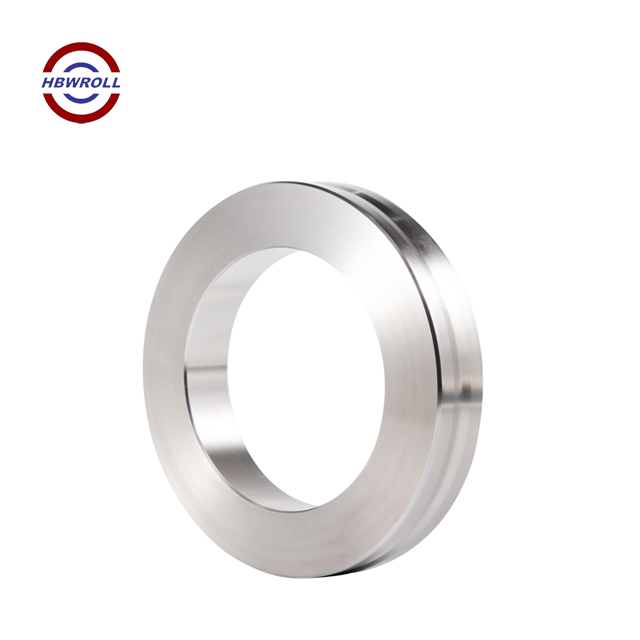

Pinch Roll Ring | |||
Brand | HBW ROLL | Material Code | HBWr04 |
Specification | Ø200-Ø550 | Each Re-machining | ≤0.8mm (reducing) |
Hardness | 64-66HRC | Surface Hardness Uniformity | ≤3HSD |
Hardness Drop | ≤2HSD | ||
Features & Advantages | 1. High wear resistance and impact toughness under thermal load | ||
2. No cracking or bursting phenomenon | |||
3. Less re-machining amount | |||
4. Good processability with high machining efficiency | |||
5. Total steel pass life can reach over 70% that of TC rings and price only 40% of TC rings. | |||
Application | Pinch process if the high speed wire and bar rolling mills | ||
◆◇ Chemical Analysis
Material | HBW Patented Chemical Composition (%) | |||||||||||
C | Si | Mn | Cr | Ni | Mo | V | W | P & S | Nb | Co | Others | |
HSS (Alloy composition changes based on different grades) | 1.5 ~ 2.10 | 0.3 ~ 1.0 | 0.30 ~ 0.70 | 3.00 ~ 6.00 | 0.50 ~ 1.50 | 3.0 ~ 7.0 | 2.0 ~ 8.0 | 1.0 ~ 8.0 | ≤0.03 | Depends on HSS Grade | ||
◆◇ Physical Properties
| Properties | Tensile Strengt | Compressive Strength | |
| ≥700MPa | ≥2500MPa | ||
◆◇ Micro structure
Excellent Technical of HBW’s Patented Casting and HT Process Guarantee the Superior Micro-structure of each HSS Rolls.
Metallographic Micrograph are available to supply in HBW.
